Strip foil curtain calculator

The calculator below allows you to calculate the amount of materials needed to make a curtain from flexible PVC foil strips. After selecting the basic parameters and materials you want to use to make the curtain, you need to specify its dimensions (measured in mm). Finally, after pressing the "calculate" button, the program will present a list of materials that need to be ordered. The "order" button transfers the entire list of goods to the basket and allows you to place an order.

Strip curtain
? Select 200 for openings less than 2500mm high, pedestrian traffic, transport using pallet carts and other hand carts. Select 300 for openings and curtains > 2500mm high, mechanical transport, forklifts.

The key to choosing the width of the strips from which we are to make the curtain, is the way of use and the height of the curtain. Where there is mainly pedestrian traffic and not very intensive goods traffic using pallet trucks or other hand trucks, it is optimal to use a 200 mm wide foil. For openings with forklift traffic or other internal combustion or electric drives, 300 mm wide strips are necessary. In the case of openings with a height above 2500 mm, it is also worth considering using a 300 mm wide foil due to its lower susceptibility to stretching/elongation under the influence of its own weight.

? Choose "standard" for external and internal curtains to limit heat and air exchange between the two environments. Choose "polar" for cold and freezer rooms and driveway gates exposed to very low temperatures.

Standard PVC foil, thanks to its wide temperature range from -15°C to +50°C, is perfect as a universal strip curtain for industrial doors in shops, warehouses or production halls. It can be used both inside and outside. Polar PVC foil is suitable for use in low temperatures. Its resistance range extends from -30°C to +30°C, which is why it is used in cold stores and freezers. It can also be used in external loading gates to protect the facility from low temperatures in winter. Due to its properties, it is not recommended to use it at higher temperatures - in such conditions, the "viscosity" of the material increases rapidly, which makes movement through this type of curtain difficult.

? Choose galvanized steel for standard applications, rooms with a dry atmosphere. Choose stainless steel (inox) for high humidity, aggressive environment or when you care about the long life of the slings.

We offer slings/mounting systems made of two types of material. Galvanized steel is a cheaper material, sufficient for standard applications, especially indoor, dry and non-aggressive environment. Stainless steel slings are better for outdoor applications, in cold and freezing chambers, agricultural livestock rooms, meat cutting rooms, industrial rooms with a more aggressive atmosphere or wherever, regardless of the slightly higher initial price, we want high durability of mounting elements.

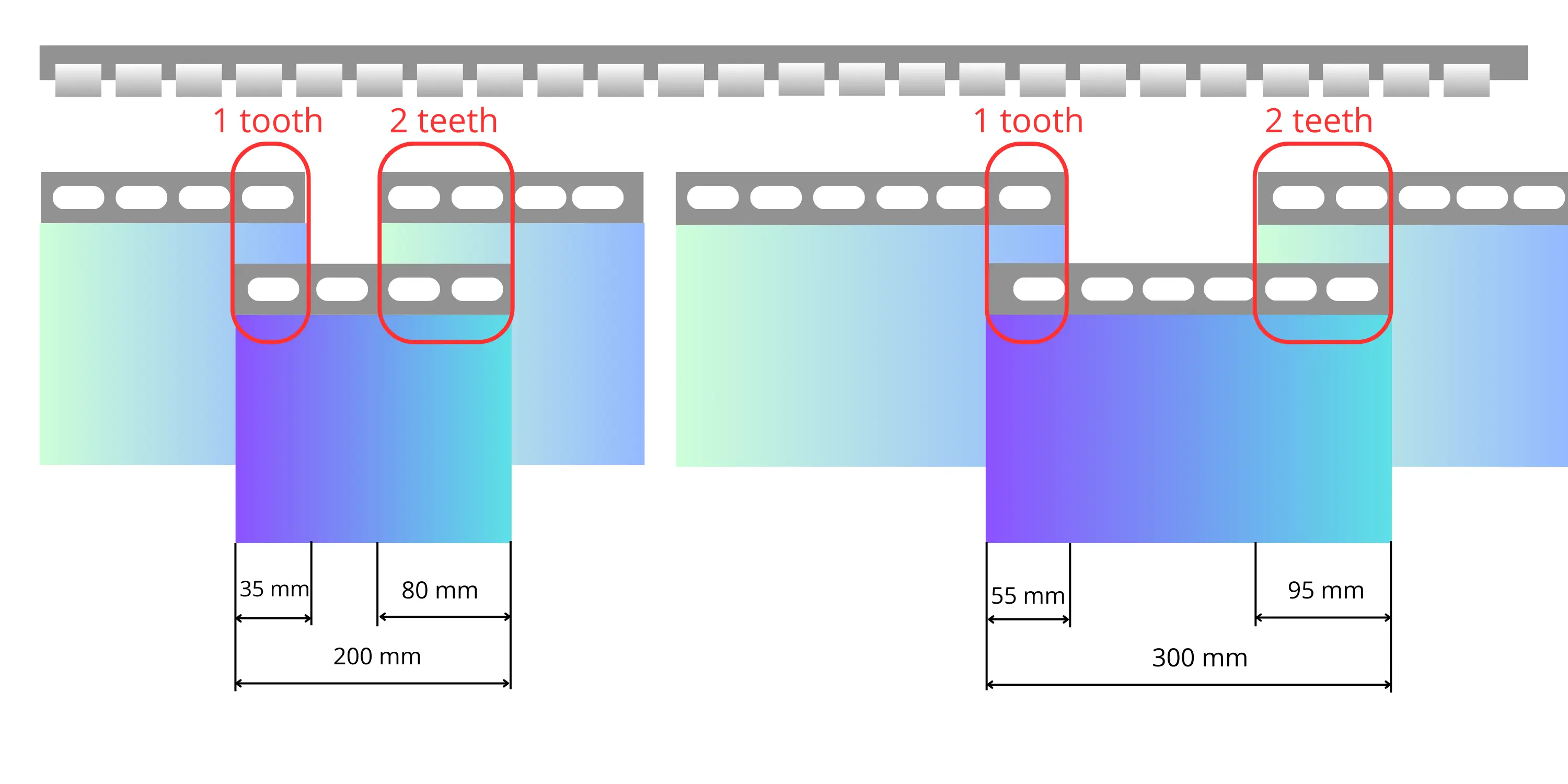

? Choose one "tooth" for low openings up to 2100mm when you do not need a lot of "tightness" of the curtain. Choose 2 "teeth" when the curtain height exceeds 2500mm, or when better crutain tightness is needed, large temperature differences between environments or large air movement are expected.
Tabs

An important parameter of the curtain is the strip overlap used. It has a fundamental influence on the insulation value. The more the adjacent strips overlap, the more the curtain is "tight" and prevents air exchange between the separated spaces. However, passing through such curtain requires the use of greater force and the amount of foil needed to make it increases.

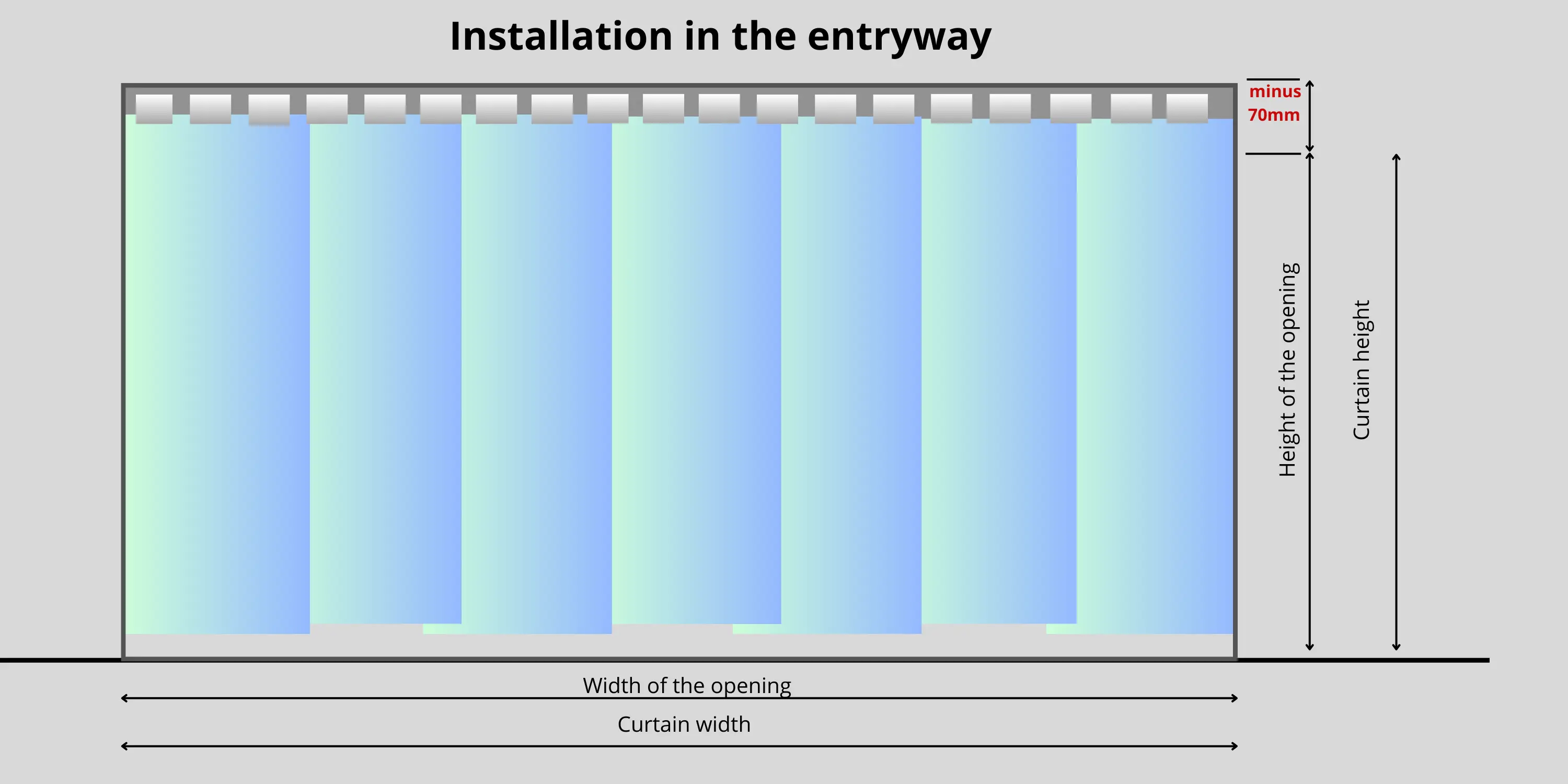

? Enter the height of the opening reduced by 70mm - for mounting within an opening, or the height of the opening plus an appropriate margin if the comb strip is to be mounted above the opening.
Installation in the entryway

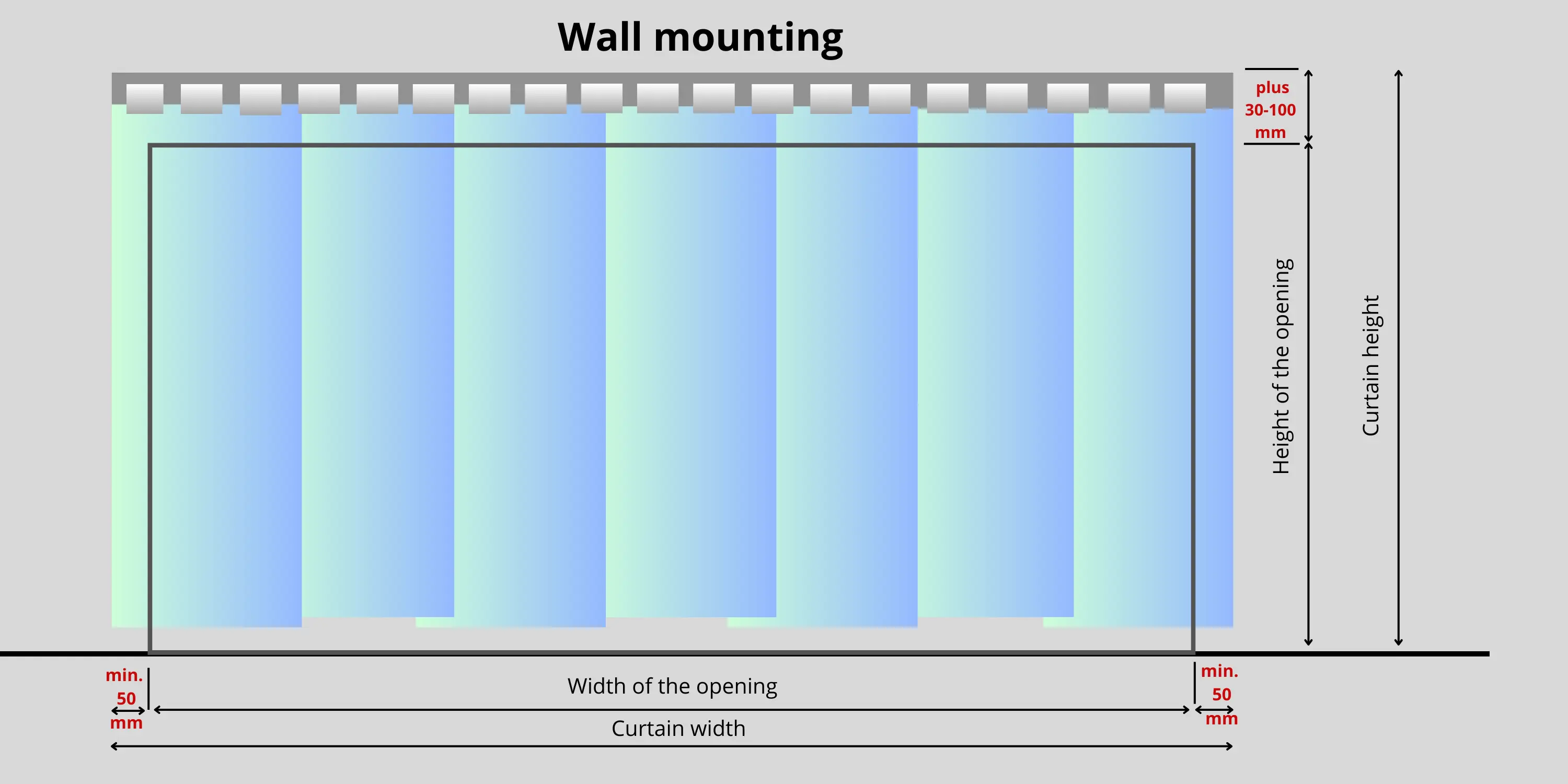

? Enter the width of the curtain - for mounting inside the opening or enter the width of the opening plus an overlap of min. 50mm on each wall - for mounting above it.
Wall mounting
PVC foil 300 mm calculator
PVC foil 300 mm calculator
PVC foil 300 mm calculator
PVC foil 300 mm calculator
PVC foil 300 mm calculator
PVC foil 300 mm calculator

PVC foil 300 mm calculator

Producer: HISURE
Szerokość pasów
Size
0,00 EUR net / rm
0,00 EUR
0,00 EUR incl. VAT / rm
Lowest price in 30 days before discount: / rm
Regular price: / rm
+ Add to favorites
Product temporarily unavailable
PVC foil for strip curtain.
Width:300mm
Thickness: 3mm - type standard
Temperature application range: -5C to +60C.
Length: 50m on rolls.
Price is applied for 1 unit (meter).
Door curtains made from soft PVC belts are the most cost-effective solution designed to protect people and goods against the various environmental conditions (heat radiation, low temperature, humidity) and the noise, dust, insects and drafts. PCV strips are made of plasticized PVC, resistant to UV rays.
PVC curtains in two types: "standard" and "cold" which allows its use in a wide temperature range (from - 30oC to + 60oC). Curtains provide an excellent seal to go, do not impede pedestrian traffic while or transiting trucks. Strip curtain consists of individual strips that are fastened with metal slings (fixing plates) on detachable comb.

Application:

-
Door curtain (input, internal)
-
curtains in the doorways of landing
-
curtain in the cold and freezers, meat processing plants and food processing
-
curtains shielding the individual job

Advantages:

-
reduce heat loss or temperature rise
-
reduce and prevent drafts
-
noise reduction
-
difficulty of getting the birds and insects
-
protection against penetration of dust, smoke, fumes, moisture
-
in special as a protection against ultraviolet radiation during welding jobs
