2-Valve Digital Manifold Gauge Set SUPER STARS ST-B268D
Producer:
SUPER STARS
Product code:
06807
2-Valve Digital Manifold Gauge Set Super Stars ST-B268D
Professional digital manifold gauge set for HVAC and refrigeration service applications.

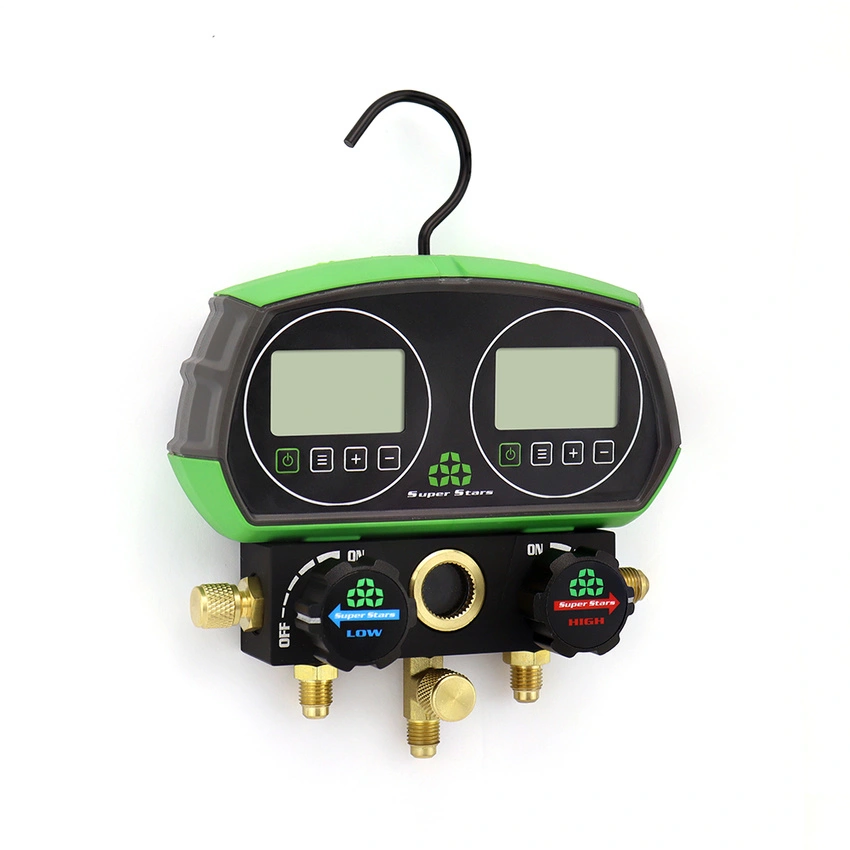

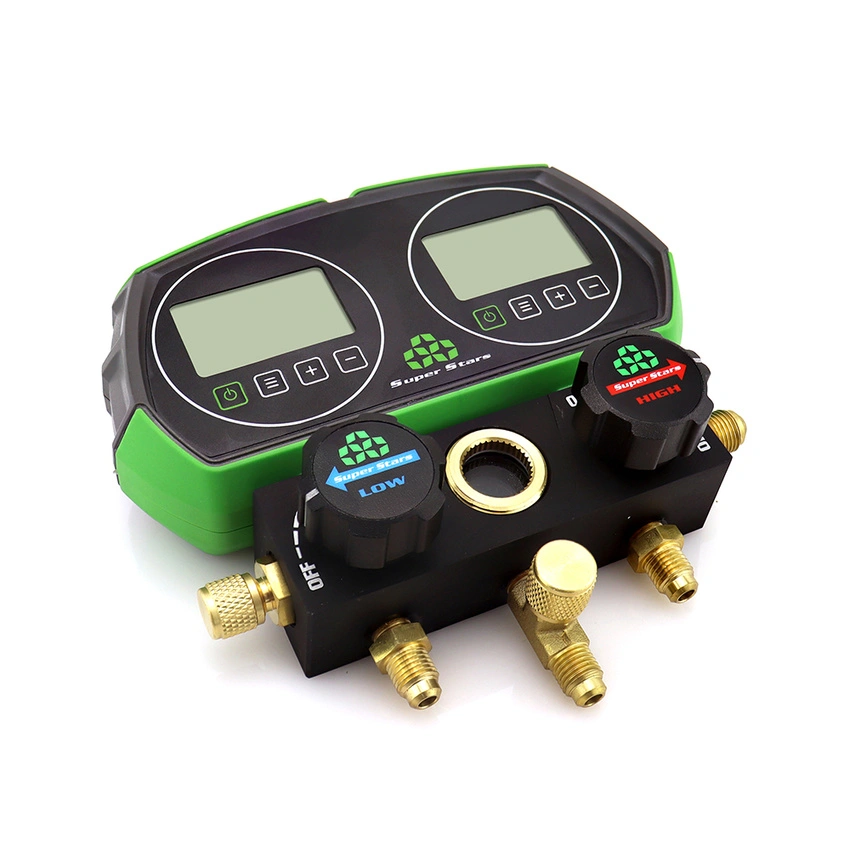

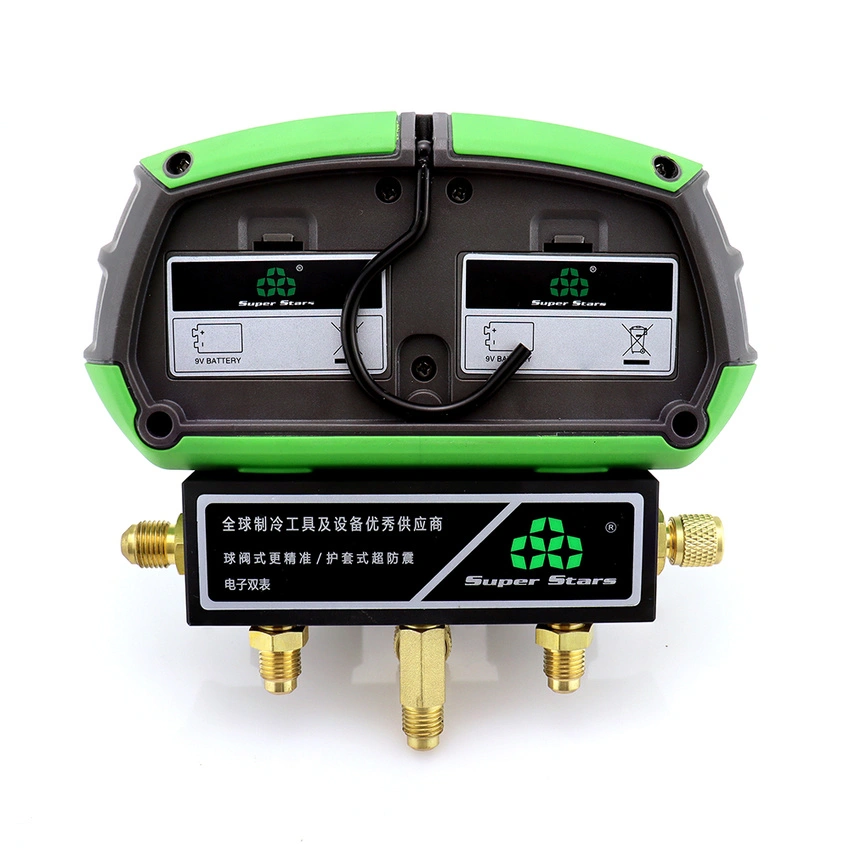

The Super Stars ST-B268D is a digital manifold gauge equipped with manual ball valves and a clear backlit LCD display. The device allows precise measurement of operating pressure, vacuum monitoring, and system diagnostics for a wide range of refrigerants. Its built-in database includes over 80 commonly used refrigerants, making it a versatile and reliable tool for daily HVACR service work.
Key Features
- Digital pressure measurement – accurate high and low pressure readings displayed on the LCD screen.
- Three operating modes – refrigerant pressure, vacuum percentage, and diagnostic mode.
- Refrigerant database – over 80 refrigerants including R22, R32, R134a, R410A, R600a, R1234yf.
- Manual ball valves – precise flow control and reliable sealing.
- Robust construction – aluminum alloy body resistant to corrosion and mechanical damage.
- Double housing protection – outer rubber cover reinforced with rigid plastic.
- Ergonomic knobs – aluminum alloy rotary knobs with high wear resistance.
- Collapsible hook – convenient hanging during service operations.
- Overpressure protection – protects the system against excessive pressure.
Technical Specifications
| Model | ST-B268D |
| Type | Digital manifold gauge set, 2 ball valves |
| Operating modes | Refrigerant pressure / Vacuum (%) / Diagnostics |
| Refrigerant database | >80 refrigerants |
| Pressure measurement range | 0 – 6000 kPa |
| Vacuum range | -101 kPa to 0 kPa |
| Accuracy | ±0.5% |
| Resolution | 1 kPa |
| Pressure units | kPa, bar, PSI, inHg, kgf/cm² |
| Temperature units | °C / °F |
| Connections | 1/4" SAE, brass |
| Service hoses | 3 × 150 cm, 1/4" SAE (red, blue, yellow) |
| Working pressure | 800 PSI |
| Burst pressure | 4000 PSI |
| Power supply | 9 V DC battery |
| Auto power-off | After 10 minutes (can be disabled) |
| Operating temperature | -20°C to +60°C |
Applications
- HVAC system service and diagnostics
- Refrigeration and freezing systems
- Pressure and vacuum measurement
- Refrigerant charging and system monitoring

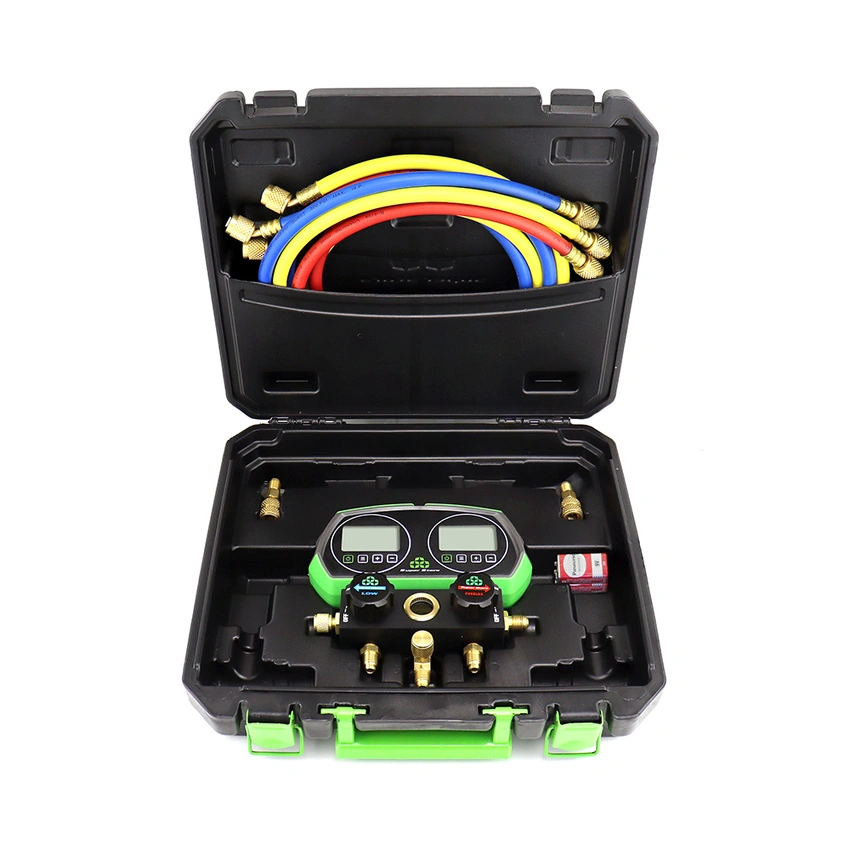

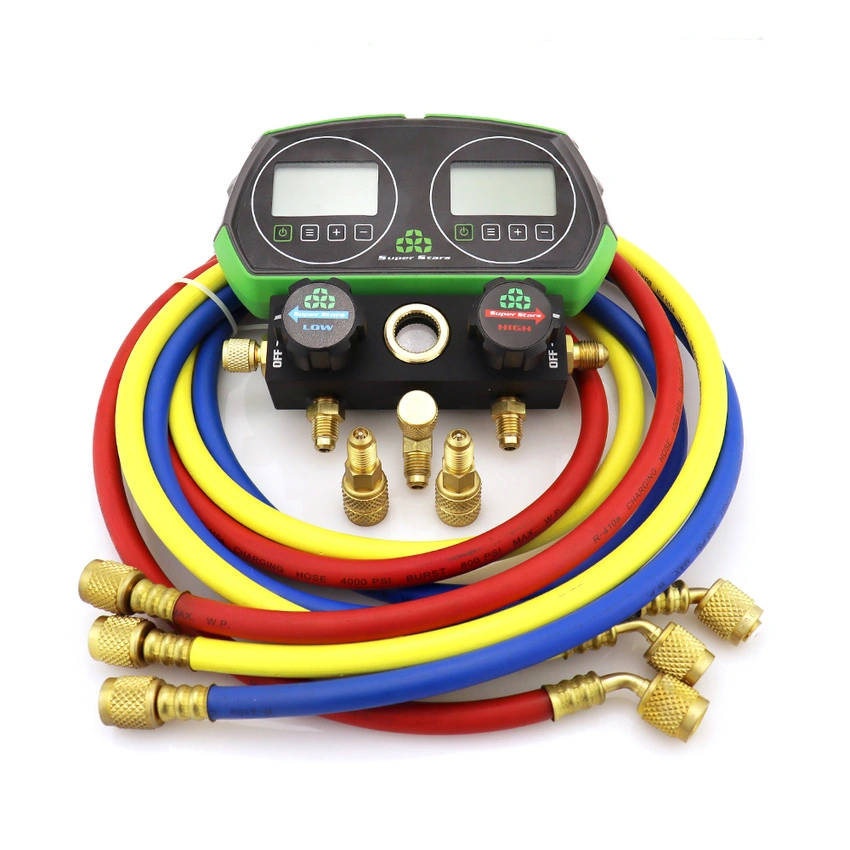

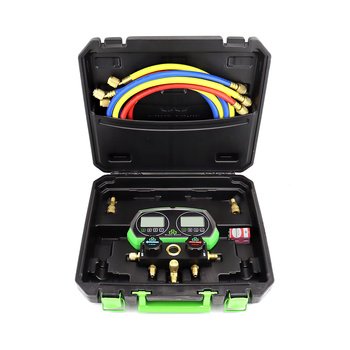

Package Contents
- Super Stars ST-B268D digital manifold gauge
- 3 × service hoses 1/4" SAE, 150 cm length
- 2 × adapters 1/4" SAE → 5/16"
- Collapsible hook
- User manual
- Carrying case
The ST-B268D is a reliable and functional tool for HVACR professionals who require digital accuracy and durable construction in everyday service work.
