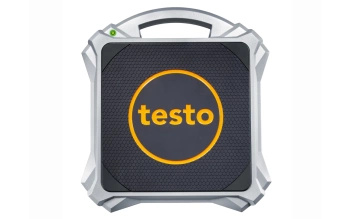

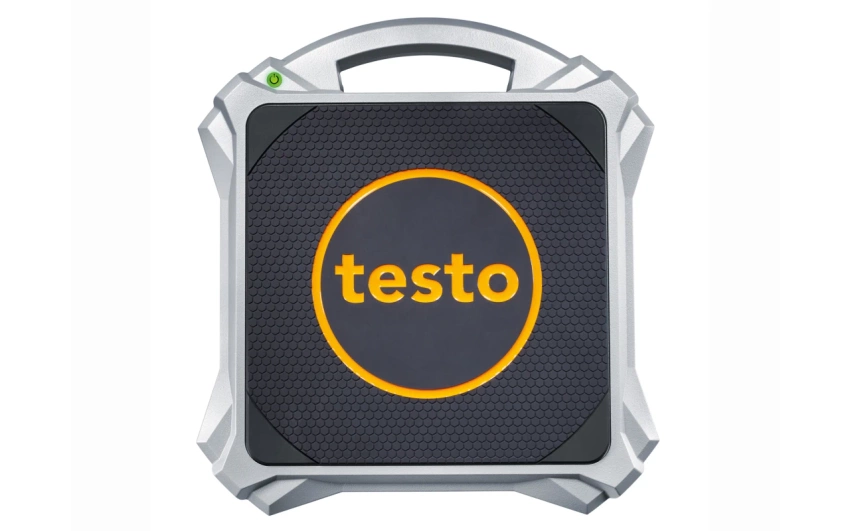

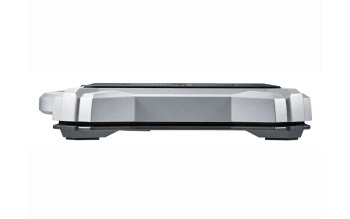

Electronic Refrigerant Scale Testo 560i with Bluetooth®

Testo 560i – Electronic Refrigerant Scale with Bluetooth®

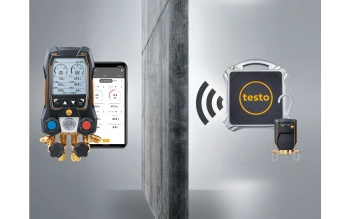

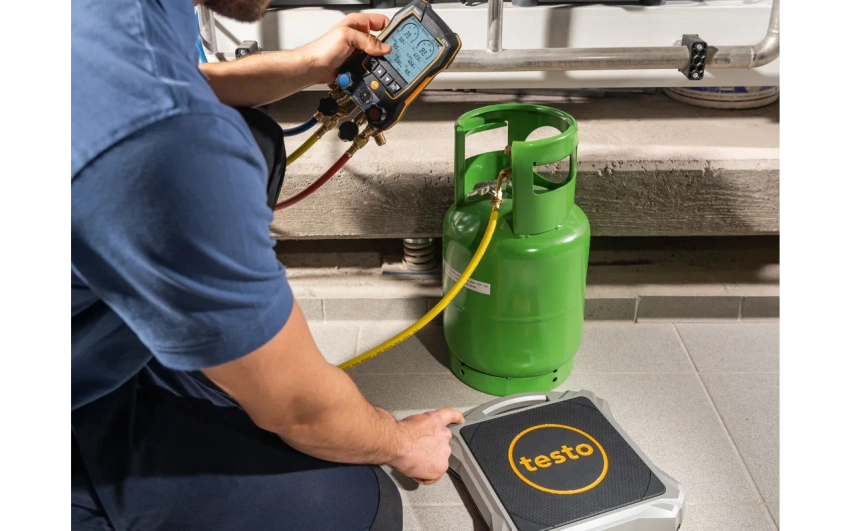

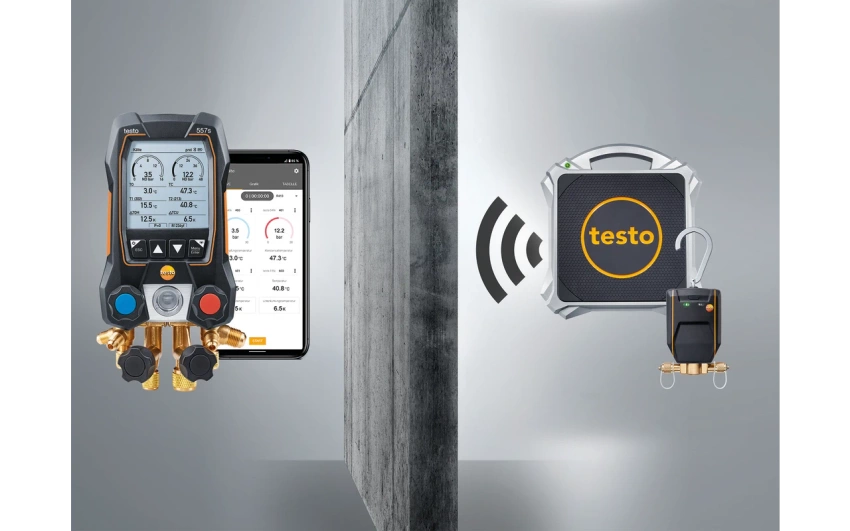

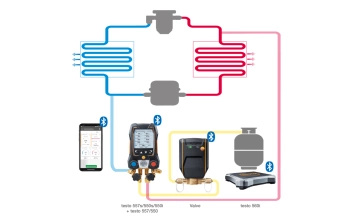

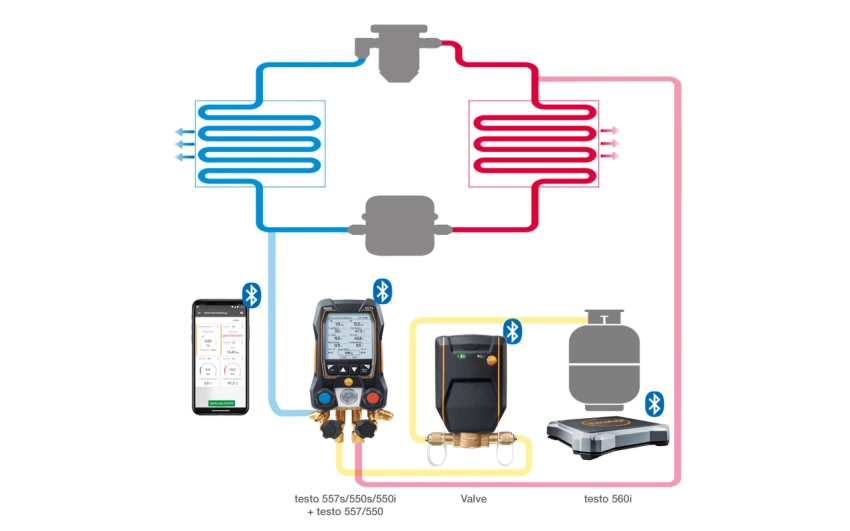

Product Description: The Testo 560i is a modern, wireless refrigerant scale designed for fast, precise, and convenient measurement of refrigerant mass. It connects via Bluetooth to Testo digital manifolds and the Testo Smart App, enabling real-time display and control from a smartphone or tablet. When combined with the optional intelligent valve, Testo 560i supports fully automated charging based on target superheat, subcooling, or refrigerant weight.

Manufacturer No.: 0564 1560

Key Benefits:

• Wireless connection with Testo manifolds and Smart App
• Automatic system charging by target value*
• High-precision weighing: 10 g resolution, up to 100 kg capacity
• Bluetooth range: 30 m standalone, up to 150 m with manifold

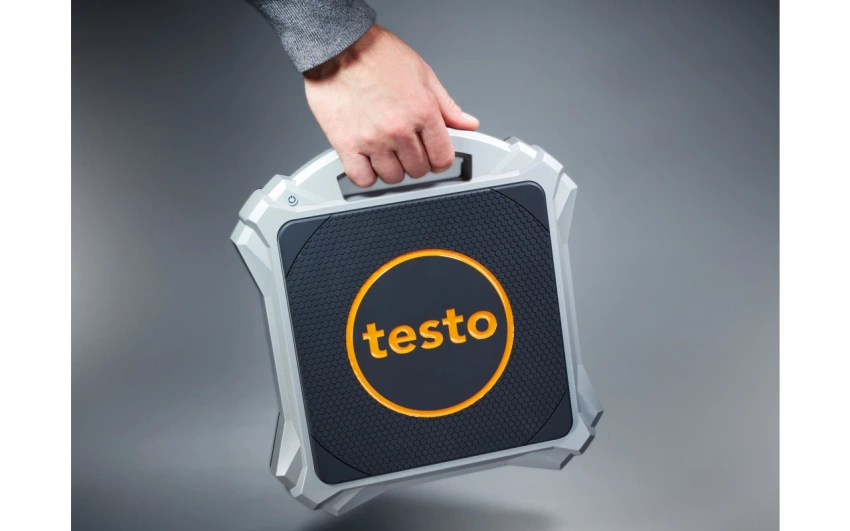

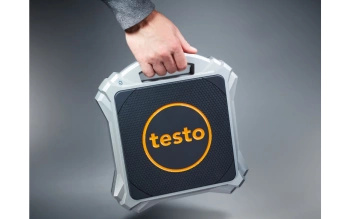

• Compact, durable housing with IP44 protection and carry handle
• Battery life up to 70 hours (4x AA)

*only with separately available intelligent valve

Technical Specifications:

• Max capacity: 100 kg
• Resolution: 10 g
• Bluetooth range: 30 m / 150 m (with manifold)
• Operating temperature: -10 to +50 °C
• Protection class: IP44
• Power: 4x AA batteries
• Battery life: up to 70 h

Scope of Delivery:

• Testo 560i electronic scale with Bluetooth

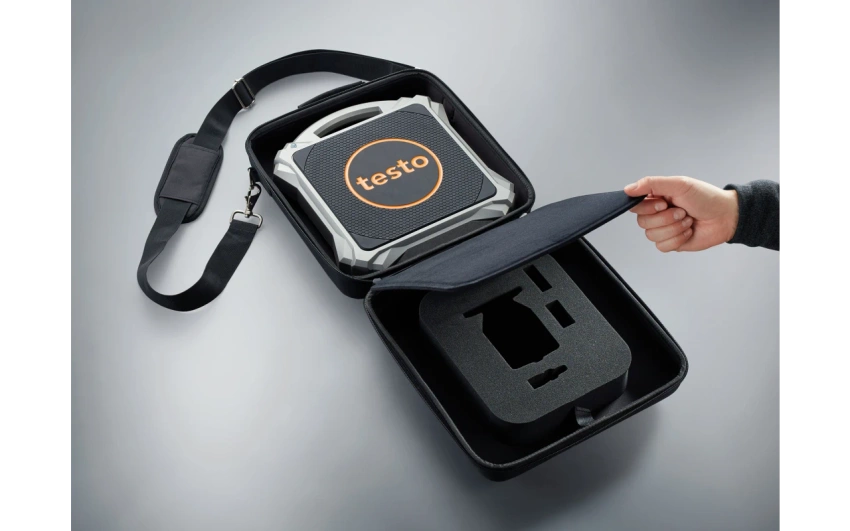

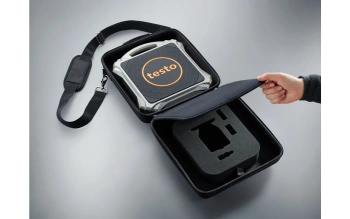

• Shoulder carry bag
• 4 x AA batteries
• User manual
• Calibration protocol
