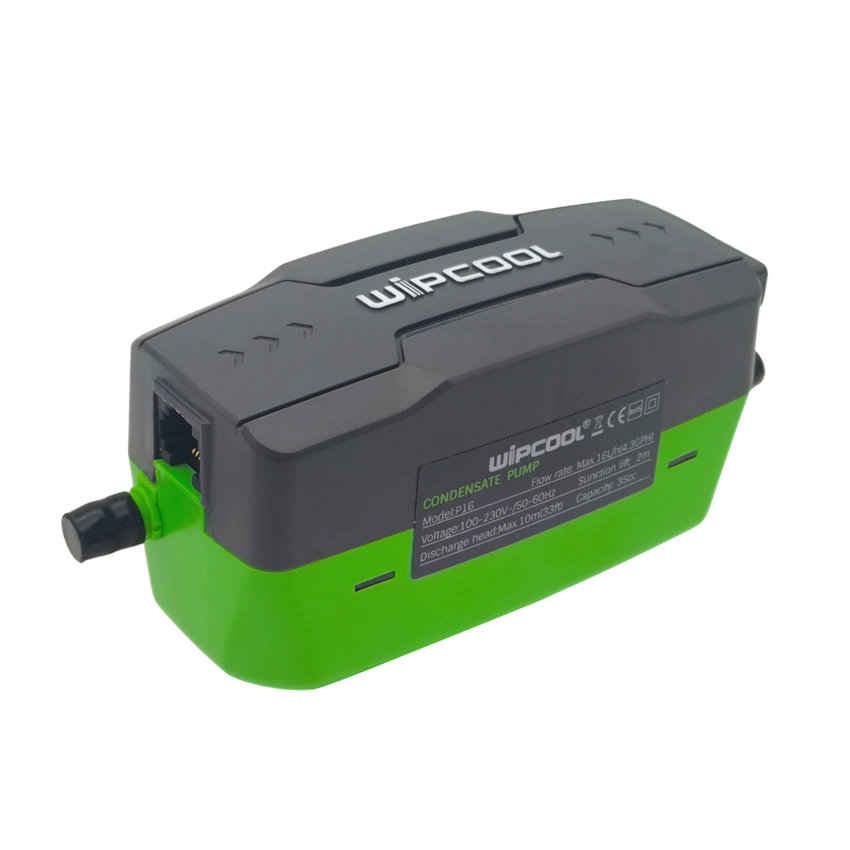

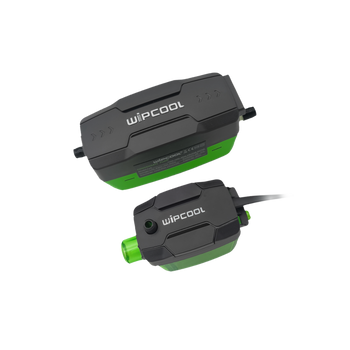

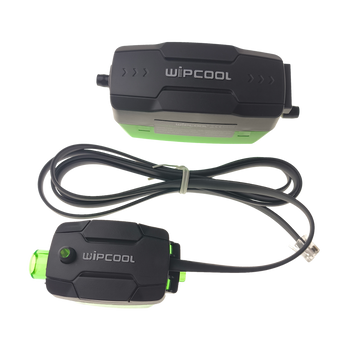

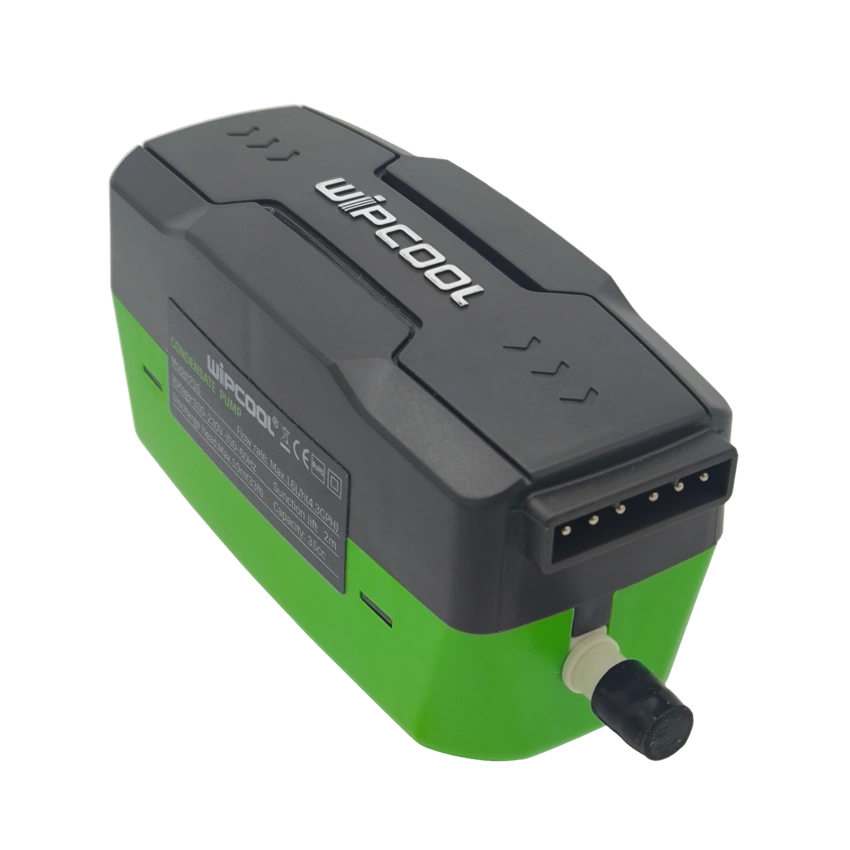

WIPCOOL P16 Condensate Pump

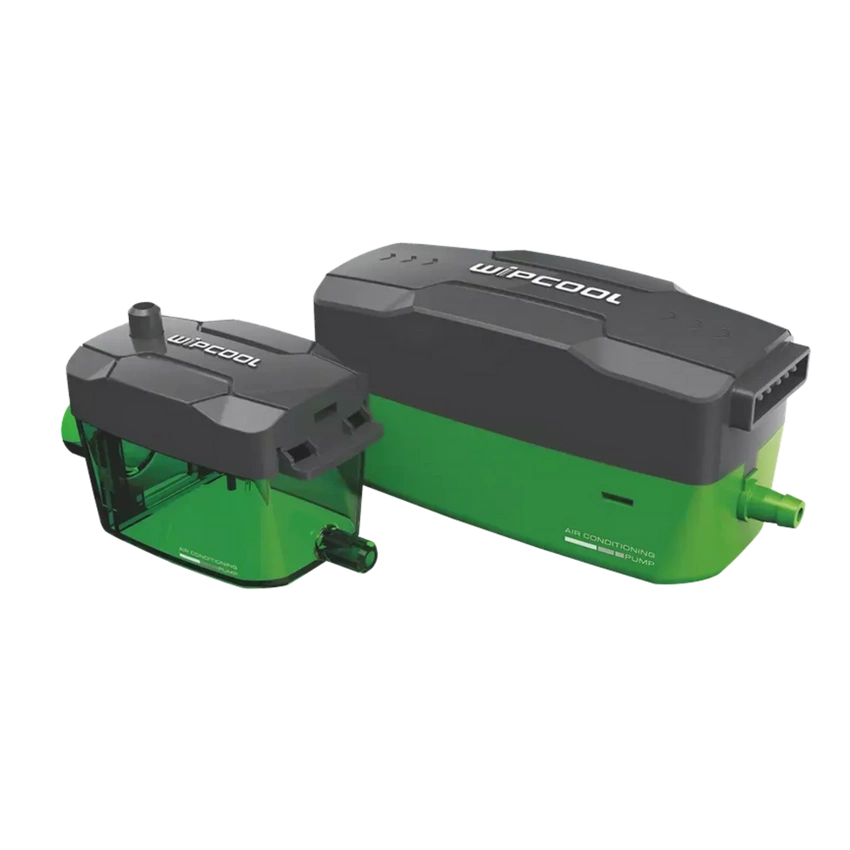

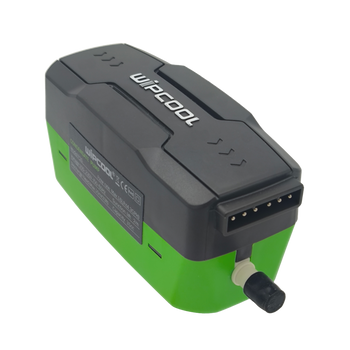

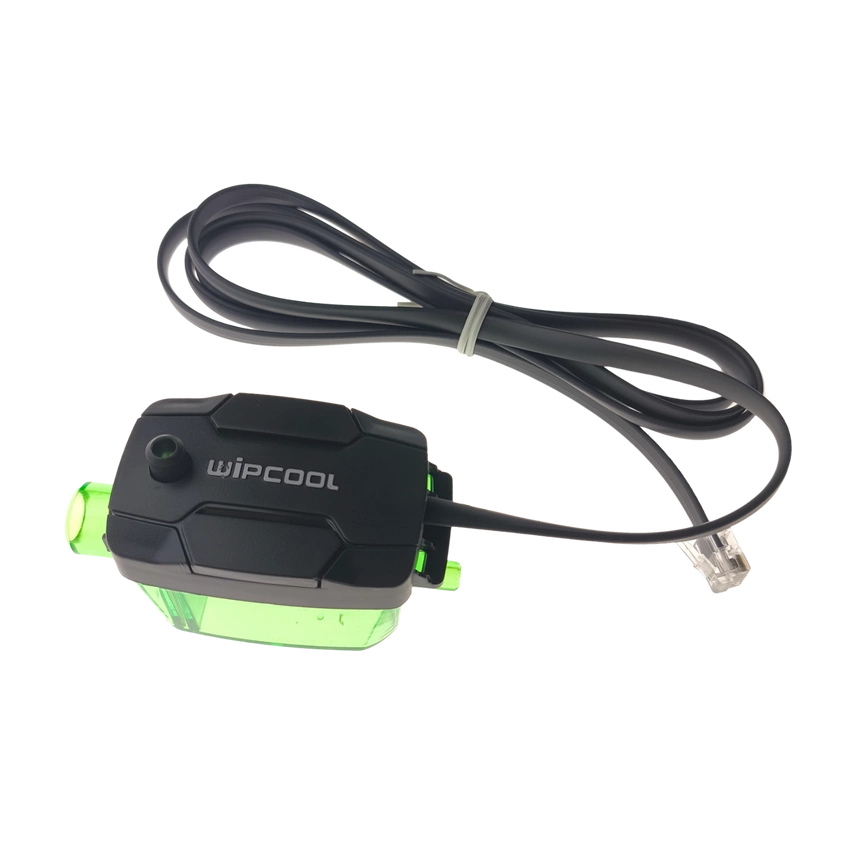

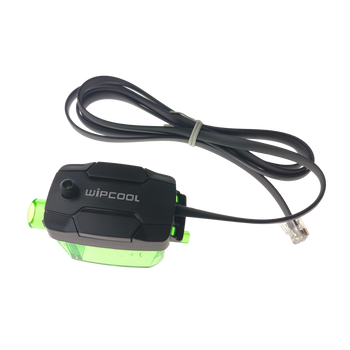

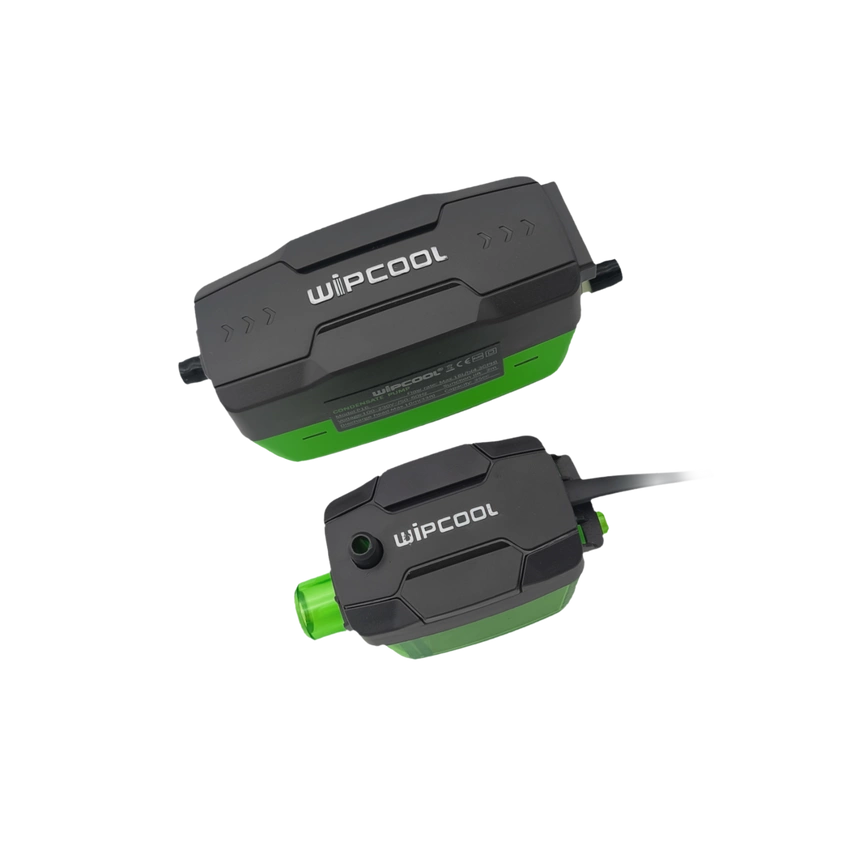

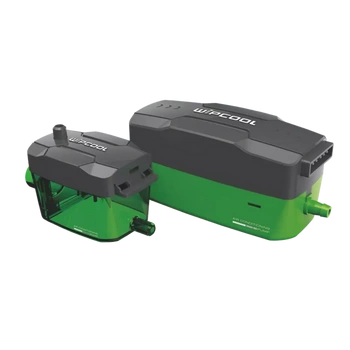

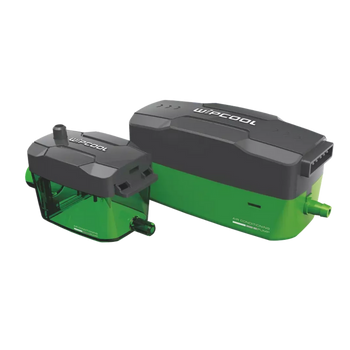

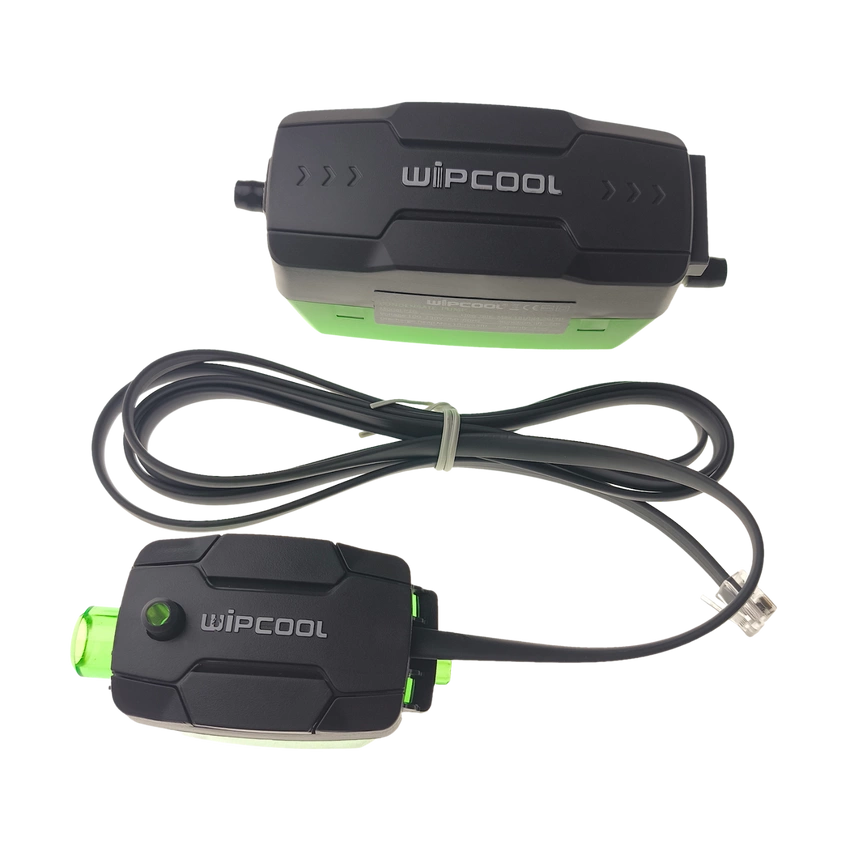

Wipcool P16 Condensate Pump – Quiet Power in a Compact Design

Wipcool Mini P16 is an advanced condensate pump from the Pioneer series, designed for reliable operation even in the most demanding environments. Its compact design, ultra-quiet performance, and high efficiency make it an ideal solution for both residential and commercial HVAC installations.

Key Advantages of the Wipcool Mini P16 Pump:

• Compact size, maximum efficiency – flow rate up to 16 l/h and condensate lift up to 10 meters.

• Quiet operation – only 19 dB, making it virtually inaudible – perfect for bedrooms, offices, hotels, and other quiet areas.

• Brushless motor and non-float sensor – ensure longer lifespan and wear resistance.

• Built-in LED indicator – simplifies monitoring of operating status.

• Flexible installation options – can be installed:

  • above suspended ceilings

  • behind wall-mounted evaporators

  • inside plastic ducts

Applications:

Wipcool Mini pumps are compatible with wall-mounted, ducted, and cassette units. Suitable for air conditioning systems with a cooling capacity of up to 30,000 BTU/h (approx. 8 kW). Thanks to a precision probe switch, the pump automatically activates when condensate water is present in the reservoir.

Technical Specifications:

• Manufacturer: Wipcool

• Series: Pioneer

• Model: P16

• Flow rate: up to 16 liters per hour

• Maximum lift height: 10 meters

• Noise level: 19 dB


• Max cooling capacity of A/C unit: up to 30,000 BTU/h (approx. 8 kW)

• Operating temperature range: 0°C to 50°C

• Gross weight: 0.650 kg

• Motor type: brushless

• Sensor type: non-float

• Additional features: LED indicator for operational status
