Compressor SECOP HMK12AA
Producer:
SECOP
Product code:
03630

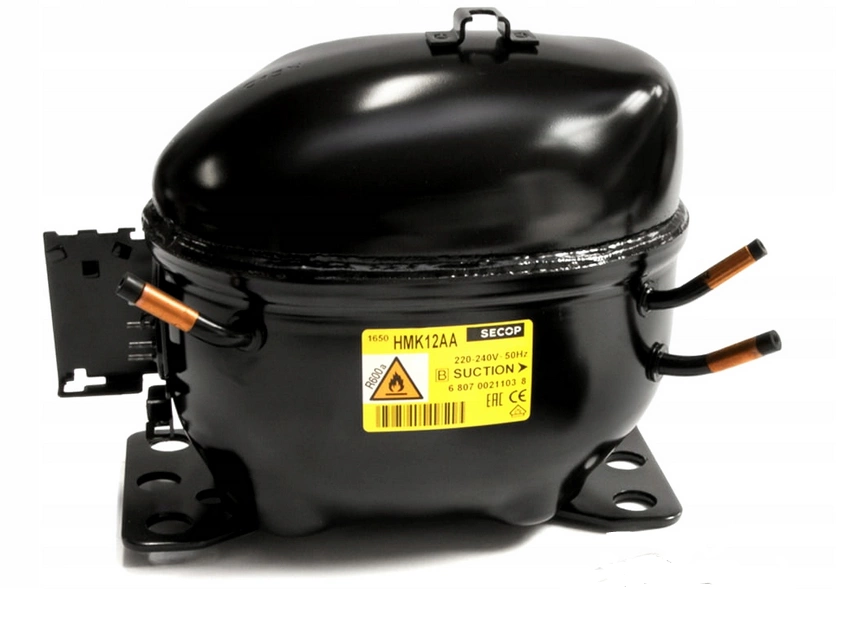

SECOP HMK12AA R600a Compressor (LBP)
The SECOP HMK12AA compressor is a Low Back Pressure (LBP) cooling unit designed for use in domestic refrigerators and freezers. It operates with R600a (isobutane) refrigerant and runs on a 220–240V power supply at 50 Hz. Its performance makes it suitable for various refrigerator models, including side-by-side units from manufacturers such as Samsung, LG, Whirlpool, Beko, and Daewoo.
Technical Specifications
- Model: HMK12AA
- Manufacturer: Secop
- Application type: LBP (Low Back Pressure)
- Refrigerant: R600a
- Power supply: 220–240 V
- Frequency: 50 Hz
- Evaporation temperature range: from -30°C to -5°C
- Condensation temperature for performance data: 55°C
Performance characteristics – SECOP HMK12AA, HP12AH, HTK12AA
| Evaporation temp. [°C] | Cooling capacity [W] | Power consumption [W] | Current consumption [A] | COP [W/W] |
|---|---|---|---|---|
| -35 | 99.3 | 90.6 | 0.69 | 1.10 |
| -30 | 137 | 107 | 0.76 | 1.28 |
| -25 | 182 | 124 | 0.84 | 1.47 |
| -23.3 | 198 | 129 | 0.87 | 1.53 |
| -20 | 233 | 140 | 0.93 | 1.66 |
| -15 | 291 | 158 | 1.01 | 1.84 |
| -10 | 355 | 175 | 1.09 | 2.02 |
| -6.7 | 401 | 187 | 1.15 | 2.14 |
| -5 | 425 | 193 | 1.18 | 2.20 |
Files to download
To download
Technical data
